Heat Treatment Plant

We offer a wide variety of heat treatments, different materials, components and dimensions. Nine stationary heat treatment furnaces are fired by gas burners and controlled electronically. We specialize in Heat Exchangers and Large Vessels and Machinery.

Processes & Materials

Heat treatment services are available for ferrous and non-ferrous metals such as general structural, tempered and case-hardened steel, corrosion- and acid-resistant stainless steel, special high-alloy materials, non-ferrous metals, light metals and casting materials, e.g. spheroidal graphite iron.

These materials can be processed in a variety of ways.

  • Stress Relief Annealing
  • Normalizing
  • Hardening
  • Tempering
  • Soft Annealing
  • Isothermal Annealing
  • Ferrite-Beading
  • Solution Annealing
  • Further Processes Upon Request

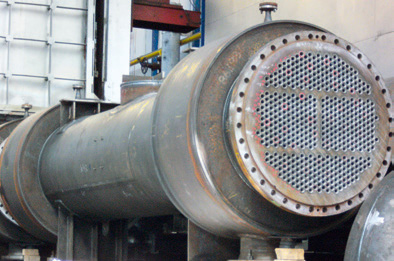

heat treatment
heat treatment

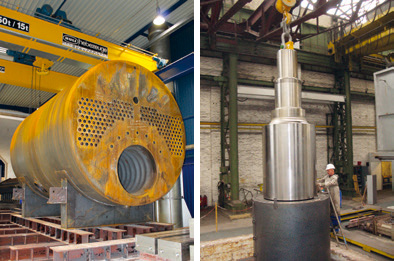

heat treatment

Capabilities

Heat treatment temperatures are controlled and monitored up to 1250°C. The maximum dimensions of the furnaces are 19m long, 6, wide, 5m high with maximum loading capacity of 300 metric tons. The water quenching basin is 8,000 x 3,000 x 3,600 with immersion capacity of up to 12 metric tons and includes an integrated circulating system that records water temperature.

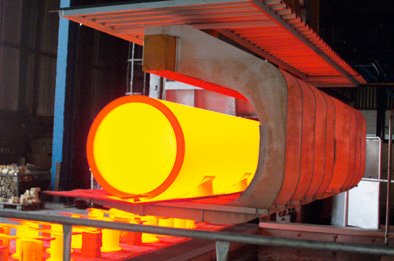

heat treatment

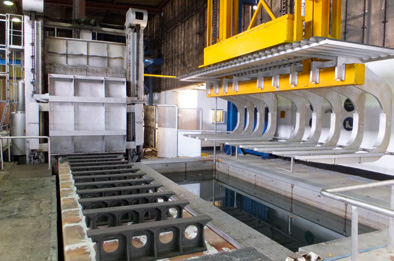

heat treatment

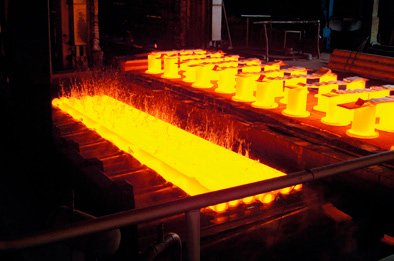

heat treatment

Assets Include

Furnace 510

  • Bogie hearth furnace with 20 burners/100 kW each
  • 5,500 x 3,800 x 3,600 mm (LxWxH)
  • Temperature up to 1,100°C
  • 2 bogies, each with 80,000 kg load-bearing capacity

Furnace 540

  • Bogie hearth furnace w/ 40 burners/120 kW each
  • 19,000 x 5,000 x 5,000mm (LxWxH)
  • Temperature up to 750°C
  • 1 bogie,150,000 kg load-bearing capacity

Furnace 550

  • Bogie hearth furnace w/ 30 burners/120 kW each
  • 12,000 x 4,300 x 2,500 mm (LxWxH)
  • Temperature up to 1,100°C
  • 1 bogie, 60,000 kg load-bearing capacity

Furnace 560

  • Bogie hearth furnace w/ 8 burners/90 kW each
  • 5,050 x 2,850 x 3,500 mm (LxWxH)
  • Temperature up to 700°C
  • 1 bogie, 12,000 kg load-bearing capacity

Furnace 570

  • Bogie hearth furnace w/ 12 burners/230 kW each
  • 7,000 x 2,000 x 1,850 mm (LxWxH)
  • Temperature up to 1,250°C.
  • 2 bogies, each w/ 30,000 kg load-bearing capacity

Furnace 580

  • Bell furnace w/ 3 burners/150 kW each
  • 1,450 x 1,450 x 1,200 mm (LxWxH)
  • Temperature up to 1,050°C
  • Loading capacity up to 1,000 kg

Furnace 590

  • Bell furnace, 2 annealing stations w/ 10 burners/350 kW ea.
  • 6,300 x 4,350 x 4,000 mm (LxWxH)
  • Temperature up to 1,100°C
  • Loading capacity up to 120,000 kg

Furnace 610

  • Shuttle furnace, 20 burners/300 kW each, 2 annealing stations
  • 16,900 x 6,000 x 5,500 mm (LxWxH)
  • Temperature up to 700°C
  • Loading capacity up to 300,000 kg per loading point

Furnace 600 (Lab Furnace)

  • Electrically heated chamber furnace
  • 600 x 400 x 300 mm (LxWxH)
  • Temperature up to 1,000°C

Committed to Quality

Our furnaces and heat treatment equipment are subject to regular monitoring by TÃœV Rheinland (the Technical Inspection Authority for the Rhineland) under the EN 60584-1 standard.

Requirements include

  • AD Datasheet HP 7/1
  • API Specification 6A, Annex M, 20th Ed. 2010 ASTM A 991
  • Norsok M-650 Edition 4

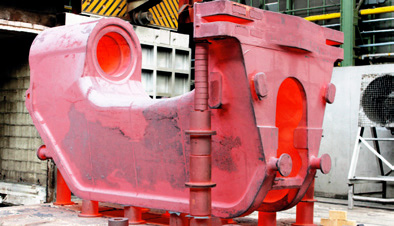

isothermal annealing press frame

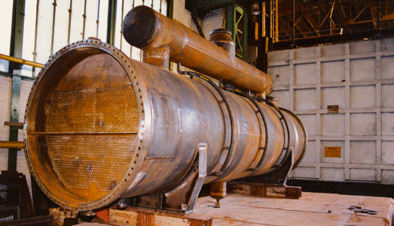

stress-free annealing

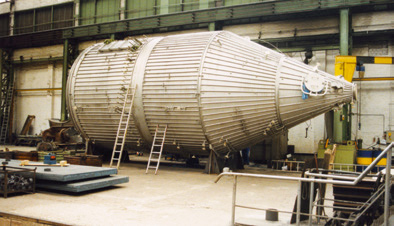

heat treatment large devices

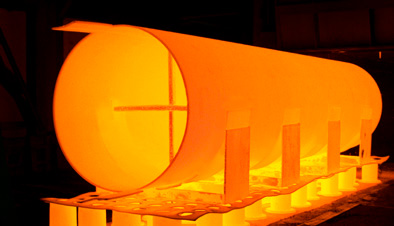

solution annealing

Our facility is ISO 9001:2015 certified.

Orders are processed by a skilled workforce, covering all sectors of the metalworking industry. We have in-depth knowledge of all heat treatment processes.
